eSOM335x Development Kit

Windows CE development kit with eSOM335x Coreboard + eDVK335x Carrierboard
SKU: ESOM335XDEV1
Vendor: uneron
*
*
*

LCD with touchscreen display

$108.00
+ -
INTRODUCTION

This package is a complete development platform for Windows CE projects include eSOM335x coreboard and eDVK335x carrierboard. The eSOM335x is a small form factor System on Module(SoM) based on AM3358BZCZA100 ARM Cortex-A8 microprocessor family from Texas Instrument.

The eSOM335x was designed very flexible, its memories are replaceable easily without any soldering work. RAM and eMMC units were designed modular and plug into coreboard through two 60pin specific connectors. DDR3L RAM modules come with 512MB capacity in standard version, but customizable to 128, 256, 1024MB depend upon customer needs. The eMMC modules exist in 8GB with 8bit Bus width by default, and it is customizable with 2, 4, 16, 32GB versions. Upgrade, repair and troubleshooting in this way is easy, quick, and cost-effective and improve maintenance ability.

This SOM with small footprint  67.6mm × 44.0mm × 5.6mm can plug into DDR3-SODIMM 204 pin straight connector in eDVK335x and IO interfaces like HDMI, LCD, Ethernet, USB, GPIO, UART, I2C, ADC and etc is accessible in development kit.

The eSOM335x can boot a real-time, small foot-print Windows CE very quickly. OS images are customized to enable users on rapid application development without any OS challenging. Users are free to choose the video output and can change their LCD without need to OS customization. In addition, users can configure their boot setting such as their logo and boot progress bar easily. Many device drivers like 4G module, Wi-Fi, Camera, CAN, Touch are integrated in OS image and users can add them to their projects safely. In addition, many sample codes are provided for software developer to access to eSOM335x peripherals and accelerates time-to-market procedures.

The eSOM335x can operate in industrial temperature range environment from -20℃ to +80℃ due to coreboard components. This tiny single board computer targets a wide range of applications, including: Medical Devices, PLC, Industrial Automation, HMIs, Entertainment system, POS, Data Acquisition, Gaming and much more.

Block Diagram

eDV335x top view

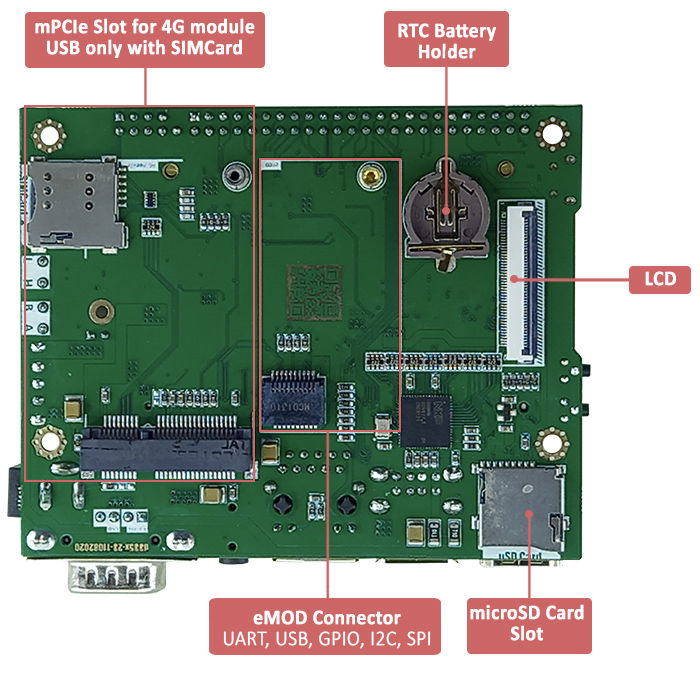

eDVK335x bottom view

Specification

Core Specifications

CharacteristicStandardCustomizable
Processor Details
ProcessorTexas Instrument AM3358BZCZA100 Up to 1GHz Sitara™ ARM® Cortex®-A8 32-Bit RISC ProcessorAM3359 / AM3354 / AM3352
Memory
RAM512MB DDR3L 16bit BUS Replaceable module128, 256, 1024MB
Storage8GB eMMC 4.3 + ECC 8bit BUS Replaceable module2, 4, 16, 32GB
Multimedia
Display TypeSingle Channel, 24bit Parallel Data Output
Color Depth24Bit
Resolution1024 x 768 (Tested)Up to 2048 * 2048
Graphics EnginePowerVR SGX530 3D
Multichannel Audio Serial Ports-2
Analog Sound (Over MASP0)HeadPhone(Stereo)
MIC(Mono)
LineOut(Stereo)(not implemented on OS)
LineIn(Stereo)(not implemented on OS)
Connectivity
USB2 HOST ModeDual OTG Function
UART5 (RX,TX)6 (RX, TX, RTS, CTS)
SPI12
I2C23
Ethernet1 (10/100/1000)2 (10/100/1000)
CAN12
SDIO1 (4bit SD-Card Reader)1 (8bit SDIO) + 1(4bit SD-Card Reader)
Analog Input8 (12bit 200KS/s)
GPIO1777
OS
WinCECE 7Debian
Physical
Size67.6 x 44.0 x 5.6
Working Temperature-20 to +80
Power5V 700mA (Max)

Carrier board Specifications

PeripheralsDetails
HDMI (Type A)720P (Through RGB to HDMI IC)
TFT LCD (FPC 45Pin)24bit Parallel
USB (Type A)2
USB (Headers)2
LAN (RJ45)10/100/1000 Mbps
HeasSet3.5mm 4-conductor
RS232 (DB9)1 (RX, TX)
RS485 (Small Phonix)Auto Transmit
CAN (Small Phonix)1x
SD Card ReaderTF-Card
4G Support over USBmPCIe Slot (USB only)
eMOD(USB, I2C, UART, GPIO)
RTC Coin Battery HolderCR1220
Power In4pin XH Socket (7.5V to 24V) DC
DC JACK (Standard 5.5 x 2.1)
Debug Port (Micro USB)Connected to the UART0 Through a USB to Serial Bridge
IO Port (Headers)5V, GND, UART x4, SPI x1, I2C x1, GPIO x14, MCASP x1, ADC x8
Size10.0 x 8.0 cm
INTRODUCTION

This package is a complete development platform for Windows CE projects include eSOM335x coreboard and eDVK335x carrierboard. The eSOM335x is a small form factor System on Module(SoM) based on AM3358BZCZA100 ARM Cortex-A8 microprocessor family from Texas Instrument.

The eSOM335x was designed very flexible, its memories are replaceable easily without any soldering work. RAM and eMMC units were designed modular and plug into coreboard through two 60pin specific connectors. DDR3L RAM modules come with 512MB capacity in standard version, but customizable to 128, 256, 1024MB depend upon customer needs. The eMMC modules exist in 8GB with 8bit Bus width by default, and it is customizable with 2, 4, 16, 32GB versions. Upgrade, repair and troubleshooting in this way is easy, quick, and cost-effective and improve maintenance ability.

This SOM with small footprint  67.6mm × 44.0mm × 5.6mm can plug into DDR3-SODIMM 204 pin straight connector in eDVK335x and IO interfaces like HDMI, LCD, Ethernet, USB, GPIO, UART, I2C, ADC and etc is accessible in development kit.

The eSOM335x can boot a real-time, small foot-print Windows CE very quickly. OS images are customized to enable users on rapid application development without any OS challenging. Users are free to choose the video output and can change their LCD without need to OS customization. In addition, users can configure their boot setting such as their logo and boot progress bar easily. Many device drivers like 4G module, Wi-Fi, Camera, CAN, Touch are integrated in OS image and users can add them to their projects safely. In addition, many sample codes are provided for software developer to access to eSOM335x peripherals and accelerates time-to-market procedures.

The eSOM335x can operate in industrial temperature range environment from -20℃ to +80℃ due to coreboard components. This tiny single board computer targets a wide range of applications, including: Medical Devices, PLC, Industrial Automation, HMIs, Entertainment system, POS, Data Acquisition, Gaming and much more.

Block Diagram

eDV335x top view

eDVK335x bottom view

Specification

Core Specifications

CharacteristicStandardCustomizable
Processor Details
ProcessorTexas Instrument AM3358BZCZA100 Up to 1GHz Sitara™ ARM® Cortex®-A8 32-Bit RISC ProcessorAM3359 / AM3354 / AM3352
Memory
RAM512MB DDR3L 16bit BUS Replaceable module128, 256, 1024MB
Storage8GB eMMC 4.3 + ECC 8bit BUS Replaceable module2, 4, 16, 32GB
Multimedia
Display TypeSingle Channel, 24bit Parallel Data Output
Color Depth24Bit
Resolution1024 x 768 (Tested)Up to 2048 * 2048
Graphics EnginePowerVR SGX530 3D
Multichannel Audio Serial Ports-2
Analog Sound (Over MASP0)HeadPhone(Stereo)
MIC(Mono)
LineOut(Stereo)(not implemented on OS)
LineIn(Stereo)(not implemented on OS)
Connectivity
USB2 HOST ModeDual OTG Function
UART5 (RX,TX)6 (RX, TX, RTS, CTS)
SPI12
I2C23
Ethernet1 (10/100/1000)2 (10/100/1000)
CAN12
SDIO1 (4bit SD-Card Reader)1 (8bit SDIO) + 1(4bit SD-Card Reader)
Analog Input8 (12bit 200KS/s)
GPIO1777
OS
WinCECE 7Debian
Physical
Size67.6 x 44.0 x 5.6
Working Temperature-20 to +80
Power5V 700mA (Max)

Carrier board Specifications

PeripheralsDetails
HDMI (Type A)720P (Through RGB to HDMI IC)
TFT LCD (FPC 45Pin)24bit Parallel
USB (Type A)2
USB (Headers)2
LAN (RJ45)10/100/1000 Mbps
HeasSet3.5mm 4-conductor
RS232 (DB9)1 (RX, TX)
RS485 (Small Phonix)Auto Transmit
CAN (Small Phonix)1x
SD Card ReaderTF-Card
4G Support over USBmPCIe Slot (USB only)
eMOD(USB, I2C, UART, GPIO)
RTC Coin Battery HolderCR1220
Power In4pin XH Socket (7.5V to 24V) DC
DC JACK (Standard 5.5 x 2.1)
Debug Port (Micro USB)Connected to the UART0 Through a USB to Serial Bridge
IO Port (Headers)5V, GND, UART x4, SPI x1, I2C x1, GPIO x14, MCASP x1, ADC x8
Size10.0 x 8.0 cm
